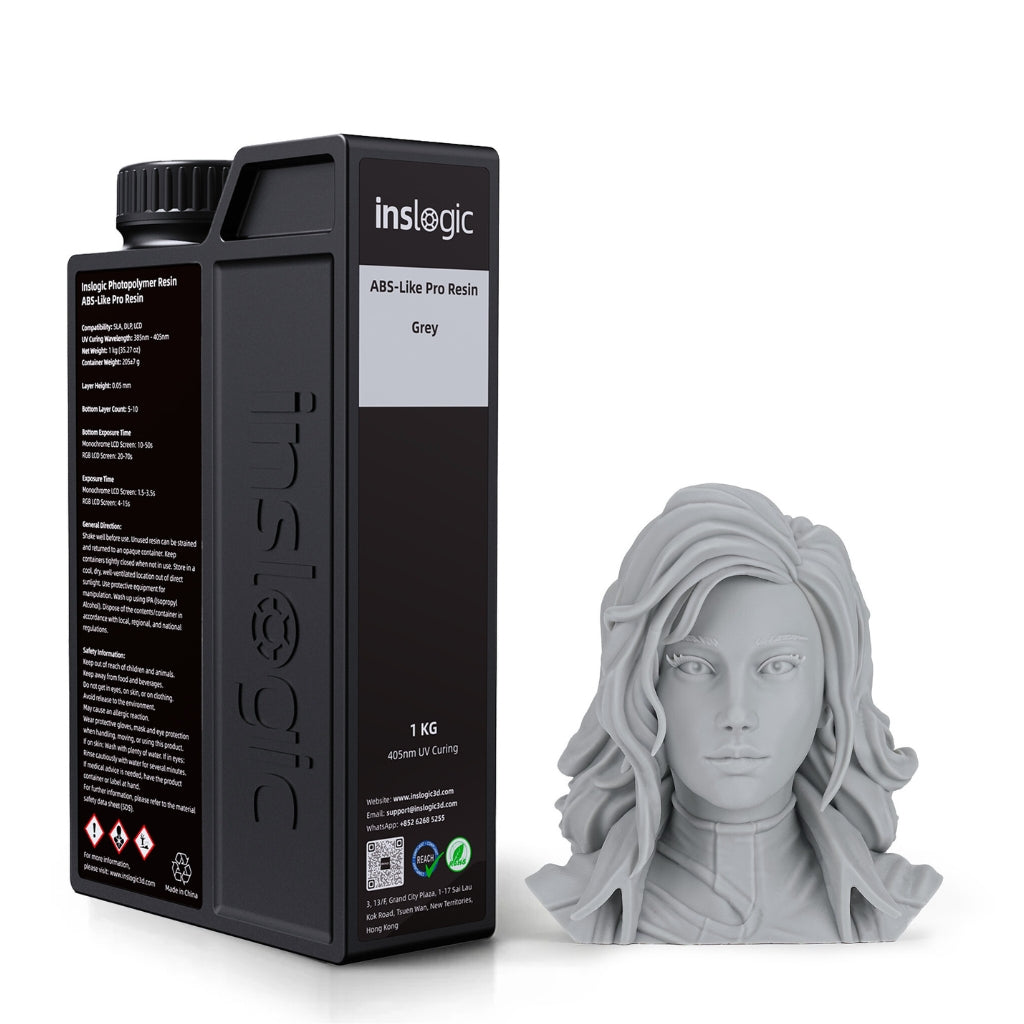

Inslogic ABS-Like Pro Resin

Inslogic

Inslogic ABS-Like Pro Resin

Sale price

Key Features

  • Smooth matte surface finish
  • Tough & impact-resistant
  • High precision & sharp details
  • Excellent dimensional accuracy
  • Low odor & excellent fluidity

Net Weight: 1 kg

Color:Grey

Inslogic ABS-Like Pro Resin is a high-performance material formed for durability, precision, and consistency. Its refined matte finish is perfect for modeling and functional applications. Enhanced mechanical properties allow drilling without compromising structural integrity.

Availability & Shipping

  • Available to ship in 1-3 business days.
  • Free shipping on all orders.

Inslogic ABS-Like Pro Resin is a versatile, high-performance 3D printing material formed to deliver high resolution, durability, and consistency. With a refined matte surface finish, it is ideal for general modeling and funtional applications.

Engineered with an improved chemical formula based on Acrylonitrile Butadiene Styrene (ABS), this resin offers outstanding mechanical properties, making it suitable for wide applications including functional prototypes and industrial engineering.

ABS-Like Pro Resin allows for drilling holes in intricate or delicate prints, giving toughness, impact resistance, and strength.

Recommended Printing Settings

Exposure time

Layer Height: 0.05 mm

Bottom Layer Count: 5 - 10

Bottom Exposure Time
Monochrome LCD screen: 10-50s
RGB LCD screen: 20-70s

Exposure Time
Monochrome LCD screen: 1.5-3.5s
RGB LCD screen: 4-15s

Lifting Distance
7-inch printer: 6-10 mm
Printers larger than 7-inch: ≥ 8 mm
Printers larger than 10-inch: ≥ 10 mm

Lifting Speed: 60-120 mm/min

* The settings displayed above are intended as guidance to help you find your optimal print settings. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

Recommended Printing Settings

Exposure time

Layer Height: 0.05 mm

Bottom Layer Count: 5 - 10

Bottom Exposure Time
Monochrome LCD screen: 10-50s
RGB LCD screen: 20-70s

Exposure Time
Monochrome LCD screen: 1.5-3.5s
RGB LCD screen: 4-15s

Lifting Distance
7-inch printer: 6-10 mm
Printers larger than 7-inch: ≥ 8 mm
Printers larger than 10-inch: ≥ 10 mm

Lifting Speed: 60-120 mm/min

* The settings displayed above are intended as guidance to help you find your optimal print settings. Each desktop 3D printer has its own characteristics and requires fine-tuning and optimization of these settings to achieve the best printing results.

Post-Processing

Wash Settings

Duration: 5 min

Notes

  • Rinse your 3D printed object in isopropyl alcohol (IPA). Avoid washing for longer than the recommended time.

  • An ultrasonic cleaner is recommended.
    Cure Settings

Duration: 5 min

Temperature: No heat or 60 °C

Notes

  • To simply remove tackiness, post-cure with no heat for 5 minutes.

Post-Processing

Wash Settings

Duration: 5 min

Notes

  • Rinse your 3D printed object in isopropyl alcohol (IPA). Avoid washing for longer than the recommended time.

  • An ultrasonic cleaner is recommended.
    Cure Settings

Duration: 5 min

Temperature: No heat or 60 °C

Notes

  • To simply remove tackiness, post-cure with no heat for 5 minutes.

Why Choose Inslogic ABS-Like Pro Resin?

Inslogic ABS resin is a high-performance material that combines high resolution, excellent toughness, impact resistance, and durability, making it ideal for both functional prototyping and model printing.

Ultra-High Resolution

Ultra-high resolution and smooth matte finish capture intricate details.

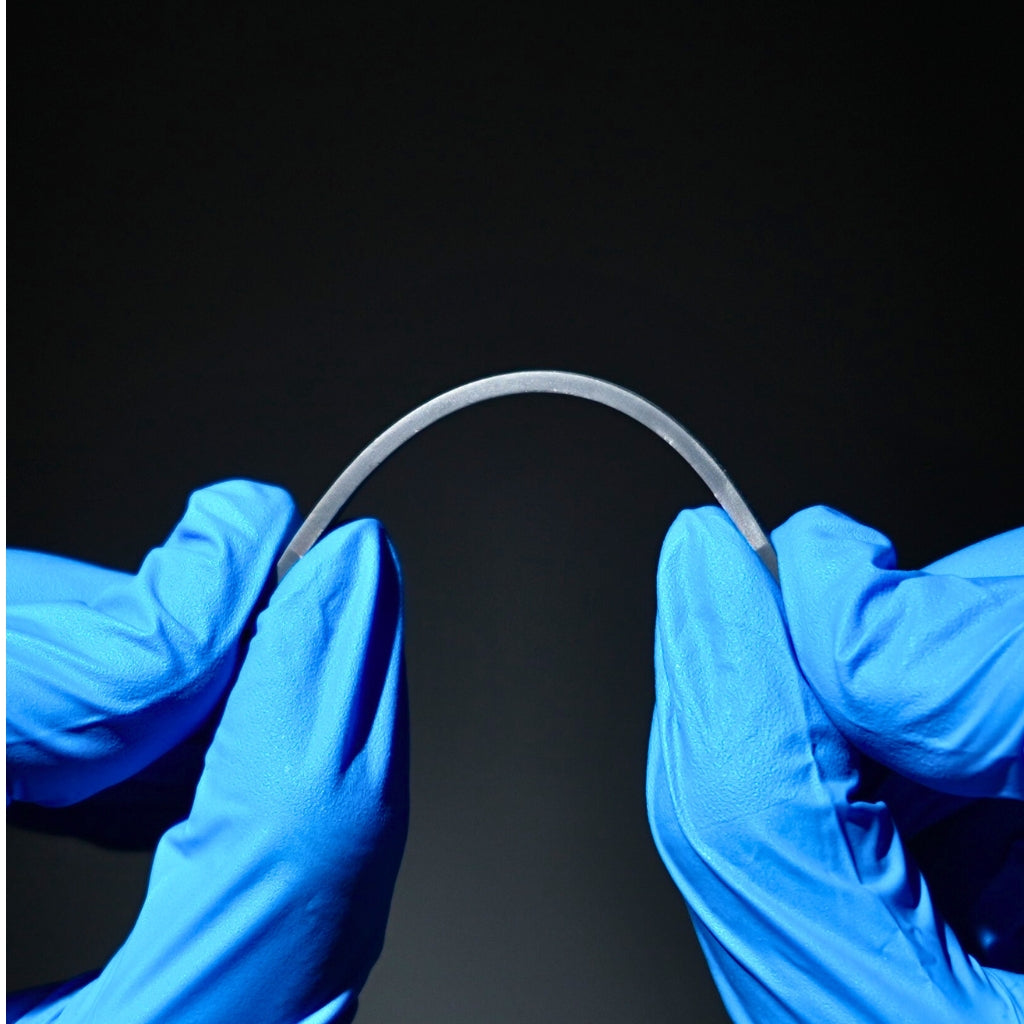

Enhanced Impact Resistance

Tough. Printed parts can absorb 50% more shock and impact energy without breaking.

Applications

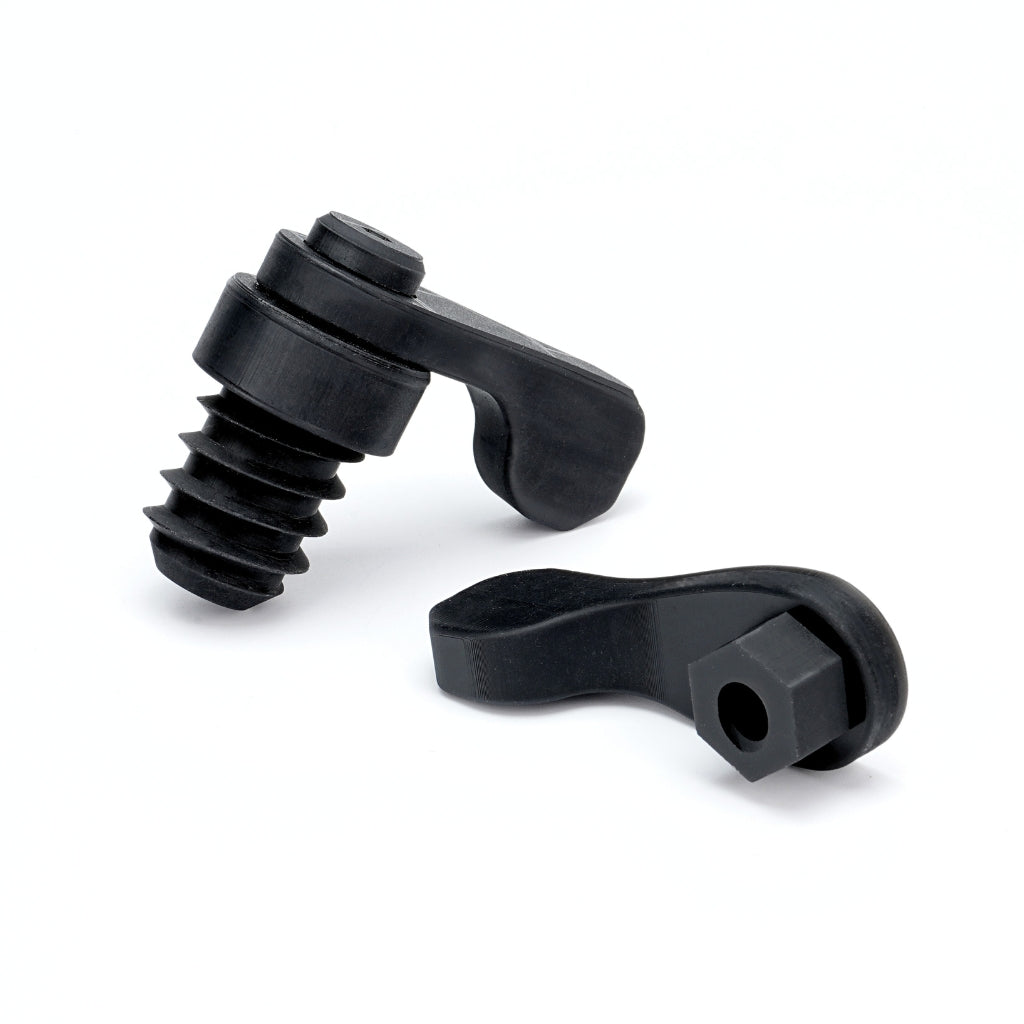

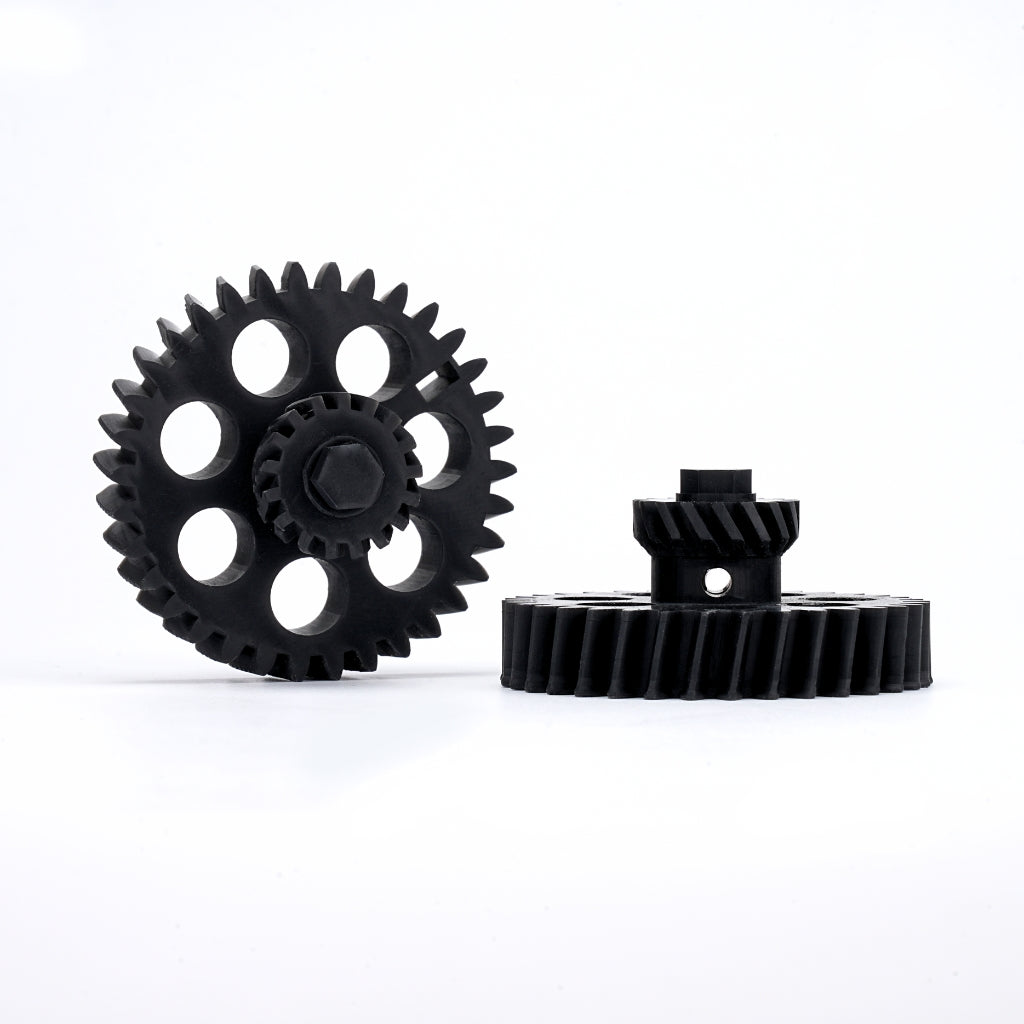

Inslogic ABS-Like Pro Resin is a versatile material that produces robust, resilient parts, making it ideal for model printing, functional prototyping, and components like joints and gears.

  • General printing
  • Architecture
  • Tabletop miniatures
  • Functional prototyping
  • Industrial parts like joints, gears and detailed model components.

Inslogic 3D Manufacturing Services

  • Resin Color on Demand. Customize your Inslogic resin with our Color on Demand. Please provide your Pantone or HEX color code in the form below.
  • Bulk Order. Available for orders of 20 kg or more resin.
